11  Vector Data

Connecting points creates more complicated data types—vector data—that represent lines and polygons.

In this topic, we will focus on lines and polygons. These are represented as sf objects, we can leverage a large amount of st_* functions to perform manipulations, and we can visualize them using either built-in routines or via ggplot (as expected).

Lecture Materials

Below are the slides that are used in the lecture component of this topic. You can cycle through them using the cursor arrows view or open the online version in a new browser window.

Raw Data

The data for this are going to be represented by roads and development zones in Richmond, Virginia. These data are made available by the GIS Department of the City of Richmond. For this example, we will be loading these in as shapefiles.

You can load in shapefile data directly into R but we have to do a little work. First, we should understand that a shapefile is not an actual file, it is a collection of several files. They are often zipped up into a single archive.

Here are two shape file archives that I have up on Github in the class repository.

library( sf )

Linking to GEOS 3.13.0, GDAL 3.8.5, PROJ 9.5.1; sf_use_s2() is TRUE

library( tidyverse )

── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.2.1     ✔ readr     2.2.0
✔ forcats   1.0.1     ✔ stringr   1.6.0
✔ ggplot2   4.0.2     ✔ tibble    3.3.1
✔ lubridate 1.9.5     ✔ tidyr     1.3.2
✔ purrr     1.2.1

── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors

roads_url <- "https://github.com/dyerlab/ENVS-Lectures/raw/master/data/Centerlines-shp.zip"
district_url <- "https://github.com/dyerlab/ENVS-Lectures/raw/master/data/Zoning_Districts-shp.zip"

We can use R to download and unzip the file in the current data directory (n.b., you can do it using a browser as well). To use R you need to first download them (I’ve set eval=FALSE to the chuck so it is not redownloaded each time. Run it by hand using CTRL/CMD + Return).

download.file( district_url , destfile = "./Districts.zip")
download.file( roads_url, destfile =  "./Roads.zip")

We can unzip them now as:

unzip("Districts.zip")
unzip("Roads.zip")

These routines will expand the archives in the current directory.

Depending upon how the archives were created, they may make a sub directory or just a pile of files in the same directory. For this example, the are one of each with the Zoning_Districts. set of files expanded in the current directory and the Roads expanded to a subfolder named Centerlines-shp.

system( "ls" )

Lines

We’ve covered points and now if we put them together in a sequence, we get lines. They are taken in the order given, just like when we were plotting polygons using geom_polygon(). Instead of loading these in manually, I’m going to load in the shapefile with the roads. To load in shapefiles, we use the st_read() function and pass it the .shp file.

roads <- st_read( "Centerlines-shp/tran_Carriageway.shp" )

Reading layer `tran_Carriageway' from data source
  `/Users/rodney/Courses/ENVS543-Book/Centerlines-shp/tran_Carriageway.shp'
  using driver `ESRI Shapefile'
Simple feature collection with 29081 features and 25 fields
Geometry type: LINESTRING
Dimension:     XY
Bounding box:  xmin: 11734060 ymin: 3682790 xmax: 11817490 ymax: 3751927
Projected CRS: NAD83 / Virginia South (ftUS)

names( roads )

 [1] "FID"        "Carriagewa" "AssetID"    "StreetType" "Functional"
 [6] "FIPS"       "LeftFromAd" "LeftToAddr" "RightFromA" "RightToAdd"
[11] "PrefixDire" "ProperName" "SuffixType" "SuffixDire" "FullName"
[16] "RouteName"  "OneWay"     "PostedSpee" "CADRouteSp" "CreatedBy"
[21] "CreatedDat" "EditBy"     "EditDate"   "GlobalID"   "SHAPE_Leng"
[26] "geometry"

We can clean it up a bit by removing the extraneous columns.

roads %>%
  select(-CreatedBy,
         -CreatedDat,
         -EditBy,
         -EditDate) %>%
  select( FIPS, AssetID, StreetType, Functional, FullName, OneWay, geometry ) -> roads
roads

Simple feature collection with 29081 features and 6 fields
Geometry type: LINESTRING
Dimension:     XY
Bounding box:  xmin: 11734060 ymin: 3682790 xmax: 11817490 ymax: 3751927
Projected CRS: NAD83 / Virginia South (ftUS)
First 10 features:
   FIPS AssetID StreetType Functional      FullName OneWay
1   760       2  Secondary      Local     Sauer Ave   <NA>
2   760       3  Secondary      Local     Sauer Ave   <NA>
3   760      89  Secondary      Local   Amherst Ave   <NA>
4   760      91  Secondary      Local     Corbin St   <NA>
5   760      92  Secondary      Local    Piney Road   <NA>
6   760      93  Secondary      Local     Corbin St   <NA>
7   760      94  Secondary      Local Old Brook Cir   <NA>
8   760      99  Secondary  Collector  Fauquier Ave     FT
9   760     104  Secondary      Local  Nottoway Ave   <NA>
10  760     107  Secondary      Local     Corbin St   <NA>
                         geometry
1  LINESTRING (11775968 373330...
2  LINESTRING (11775997 373334...
3  LINESTRING (11785407 374003...
4  LINESTRING (11789753 374015...
5  LINESTRING (11788684 373991...
6  LINESTRING (11789640 373986...
7  LINESTRING (11787930 373982...
8  LINESTRING (11785621 373921...
9  LINESTRING (11784473 373936...
10 LINESTRING (11789514 373955...

You can see that the geometry object is a LINESTRING (in sf terms). We can see the coordinates for one of these (say Dwyer St), by conveting the geometry object to a Well Know Text (WKT) version representing the sequence of points.

For any particular street, say Three Chopt Road in Richmond, we can filter out the rows of this for each LINESTRING object.

roads %>%
  filter( FullName == "Three Chopt Road") -> three_chopt
three_chopt

Simple feature collection with 65 features and 6 fields
Geometry type: LINESTRING
Dimension:     XY
Bounding box:  xmin: 11755430 ymin: 3732239 xmax: 11766160 ymax: 3744563
Projected CRS: NAD83 / Virginia South (ftUS)
First 10 features:
   FIPS AssetID StreetType     Functional         FullName OneWay
1   760    8868     Artery Minor Arterial Three Chopt Road     FT
2   760    8870     Artery Minor Arterial Three Chopt Road     FT
3   760   10053     Artery Minor Arterial Three Chopt Road     TF
4   760   10054     Artery Minor Arterial Three Chopt Road     TF
5   760   10055     Artery Minor Arterial Three Chopt Road     FT
6   760   10056     Artery Minor Arterial Three Chopt Road     FT
7   760   10057     Artery Minor Arterial Three Chopt Road   <NA>
8   760   10058     Artery Minor Arterial Three Chopt Road   <NA>
9   760   12433     Artery Minor Arterial Three Chopt Road   <NA>
10  760   12440     Artery Minor Arterial Three Chopt Road   <NA>
                         geometry
1  LINESTRING (11763416 373910...
2  LINESTRING (11763405 373865...
3  LINESTRING (11763466 374021...
4  LINESTRING (11763452 374026...
5  LINESTRING (11763466 374021...
6  LINESTRING (11763483 374024...
7  LINESTRING (11763460 373995...
8  LINESTRING (11763449 373956...
9  LINESTRING (11765211 373462...
10 LINESTRING (11765747 373355...

This one has 65 elements, each of which is created by a sequence of points. We can loop through them and print out the coordinates in textual format as:

for( i in 1:nrow(three_chopt) ) {
  geo <- three_chopt$geometry[i]
  cat( i, st_as_text( geo ), "\n")
}

1 LINESTRING (11763416 3739109, 11763452 3739376)
2 LINESTRING (11763405 3738655, 11763403 3738666, 11763398 3738687, 11763386 3738761, 11763382 3738807, 11763383 3738849, 11763385 3738879, 11763392 3738922, 11763395 3738955, 11763414 3739084, 11763416 3739109)
3 LINESTRING (11763466 3740210, 11763459 3740241, 11763452 3740269)
4 LINESTRING (11763452 3740269, 11763455 3740306, 11763478 3740532)
5 LINESTRING (11763466 3740210, 11763475 3740227, 11763483 3740243)
6 LINESTRING (11763483 3740243, 11763487 3740298, 11763508 3740495)
7 LINESTRING (11763460 3739957, 11763460 3739970, 11763462 3740051, 11763464 3740132, 11763466 3740210)
8 LINESTRING (11763449 3739565, 11763451 3739646, 11763454 3739727, 11763456 3739813, 11763458 3739889, 11763460 3739957)
9 LINESTRING (11765211 3734622, 11765195 3734652, 11765182 3734682, 11765169 3734713, 11765159 3734744, 11765145 3734793, 11765133 3734842, 11765123 3734892, 11765114 3734955, 11765103 3735018, 11765102 3735024, 11765096 3735051, 11765089 3735077, 11765079 3735102)
10 LINESTRING (11765747 3733557, 11765743 3733573)
11 LINESTRING (11765743 3733573, 11765625 3734022, 11765619 3734041, 11765612 3734061, 11765603 3734079)
12 LINESTRING (11765603 3734079, 11765596 3734095, 11765587 3734109)
13 LINESTRING (11765785 3733407, 11765751 3733540)
14 LINESTRING (11765751 3733540, 11765747 3733557)
15 LINESTRING (11765079 3735102, 11765079 3735131, 11765078 3735159, 11765075 3735187, 11765051 3735355)
16 LINESTRING (11765587 3734109, 11765578 3734122, 11765569 3734135, 11765471 3734266, 11765356 3734419, 11765251 3734560)
17 LINESTRING (11765251 3734560, 11765230 3734591, 11765211 3734622)
18 LINESTRING (11763934 3736816, 11763898 3736854, 11763863 3736893, 11763829 3736934, 11763798 3736975, 11763768 3737018, 11763746 3737052, 11763726 3737087, 11763707 3737124)
19 LINESTRING (11763707 3737124, 11763690 3737162, 11763674 3737202, 11763661 3737242)
20 LINESTRING (11766160 3732239, 11766154 3732261, 11766146 3732281, 11766137 3732301, 11766125 3732320, 11766111 3732338)
21 LINESTRING (11766111 3732338, 11766093 3732359, 11766077 3732381, 11766063 3732405, 11766051 3732429, 11766040 3732454, 11765967 3732710, 11765954 3732756)
22 LINESTRING (11765954 3732756, 11765900 3732959)
23 LINESTRING (11765900 3732959, 11765785 3733407)
24 LINESTRING (11763442 3738419, 11763392 3738656)
25 LINESTRING (11763661 3737242, 11763641 3737323, 11763560 3737754, 11763499 3738117, 11763442 3738419)
26 LINESTRING (11765051 3735355, 11765040 3735477, 11765027 3735603, 11765006 3735720)
27 LINESTRING (11765006 3735720, 11764995 3735768, 11764982 3735815, 11764967 3735862, 11764950 3735908, 11764932 3735953, 11764911 3735997, 11764882 3736048, 11764852 3736098, 11764826 3736138, 11764798 3736178, 11764769 3736216, 11764739 3736254)
28 LINESTRING (11764137 3736666, 11764136 3736666, 11764093 3736693, 11764051 3736721, 11764011 3736751, 11763972 3736783, 11763934 3736816)
29 LINESTRING (11764739 3736254, 11764665 3736336, 11764642 3736363, 11764617 3736388, 11764591 3736412, 11764564 3736434, 11764540 3736451, 11764516 3736467, 11764490 3736482, 11764464 3736495, 11764457 3736499, 11764390 3736532, 11764273 3736592, 11764227 3736615, 11764182 3736639, 11764137 3736666)
30 LINESTRING (11765310 3734586, 11765295 3734599, 11765282 3734614, 11765268 3734634, 11765254 3734654, 11765242 3734675, 11765232 3734696, 11765219 3734727, 11765208 3734758, 11765199 3734789, 11765190 3734821, 11765177 3734889, 11765162 3734957, 11765160 3734976, 11765156 3734993, 11765150 3735011, 11765142 3735028, 11765133 3735043, 11765121 3735060, 11765108 3735075, 11765094 3735089, 11765079 3735102)
31 LINESTRING (11765857 3733581, 11765848 3733588, 11765847 3733588, 11765836 3733599, 11765825 3733611, 11765817 3733624, 11765809 3733637, 11765804 3733652, 11765749 3733864, 11765694 3734088, 11765689 3734103, 11765683 3734118, 11765675 3734132)
32 LINESTRING (11765675 3734132, 11765636 3734183, 11765359 3734547, 11765344 3734561, 11765327 3734574, 11765310 3734586)
33 LINESTRING (11759671 3743060, 11759743 3743022, 11759962 3742885)
34 LINESTRING (11759962 3742885, 11760198 3742743, 11760303 3742691, 11760432 3742645, 11760506 3742626, 11760570 3742617)
35 LINESTRING (11760570 3742617, 11760922 3742570)
36 LINESTRING (11760922 3742570, 11761128 3742538, 11761301 3742505)
37 LINESTRING (11761301 3742505, 11761737 3742422)
38 LINESTRING (11761737 3742422, 11761973 3742378, 11762064 3742355, 11762163 3742318, 11762234 3742279)
39 LINESTRING (11762234 3742279, 11762345 3742202, 11762581 3742010)
40 LINESTRING (11762581 3742010, 11762798 3741834)
41 LINESTRING (11756794 3744048, 11757219 3743916, 11757442 3743857, 11757585 3743811)
42 LINESTRING (11757585 3743811, 11757919 3743694)
43 LINESTRING (11757919 3743694, 11758226 3743587)
44 LINESTRING (11758226 3743587, 11758589 3743460)
45 LINESTRING (11758589 3743460, 11758970 3743326)
46 LINESTRING (11759295 3743234, 11759313 3743227)
47 LINESTRING (11759313 3743227, 11759332 3743220)
48 LINESTRING (11759332 3743220, 11759478 3743169, 11759644 3743095, 11759671 3743060)
49 LINESTRING (11759280 3743196, 11759299 3743190)
50 LINESTRING (11759299 3743190, 11759300 3743190, 11759318 3743183)
51 LINESTRING (11759318 3743183, 11759463 3743132, 11759631 3743056, 11759671 3743060)
52 LINESTRING (11755429 3744542, 11755434 3744537, 11755501 3744480, 11755502 3744479, 11755574 3744429, 11755576 3744428, 11755652 3744386, 11755654 3744385, 11755734 3744350, 11755736 3744349, 11756446 3744138, 11756739 3744045, 11756794 3744048)
53 LINESTRING (11755466 3744563, 11755526 3744511, 11755596 3744463, 11755671 3744421, 11755749 3744387, 11756458 3744176, 11756458 3744176, 11756750 3744084, 11756794 3744048)
54 LINESTRING (11762798 3741834, 11763253 3741478, 11763350 3741382)
55 LINESTRING (11763350 3741382, 11763364 3741367)
56 LINESTRING (11758970 3743326, 11759023 3743329, 11759295 3743234)
57 LINESTRING (11758970 3743326, 11759009 3743291, 11759280 3743196)
58 LINESTRING (11763508 3740495, 11763505 3740642)
59 LINESTRING (11763505 3740642, 11763509 3740676, 11763510 3740774, 11763500 3740870, 11763471 3741028)
60 LINESTRING (11763478 3740532, 11763505 3740642)
61 LINESTRING (11763441 3739375, 11763446 3739407, 11763449 3739565)
62 LINESTRING (11763393 3739110, 11763413 3739268, 11763413 3739284, 11763428 3739375)
63 LINESTRING (11763383 3738657, 11763380 3738666, 11763373 3738704, 11763362 3738777, 11763358 3738817, 11763359 3738854, 11763361 3738885, 11763365 3738920, 11763393 3739110)
64 LINESTRING (11763471 3741028, 11763438 3741210, 11763427 3741246, 11763398 3741312, 11763376 3741348)
65 LINESTRING (11763376 3741348, 11763364 3741367)

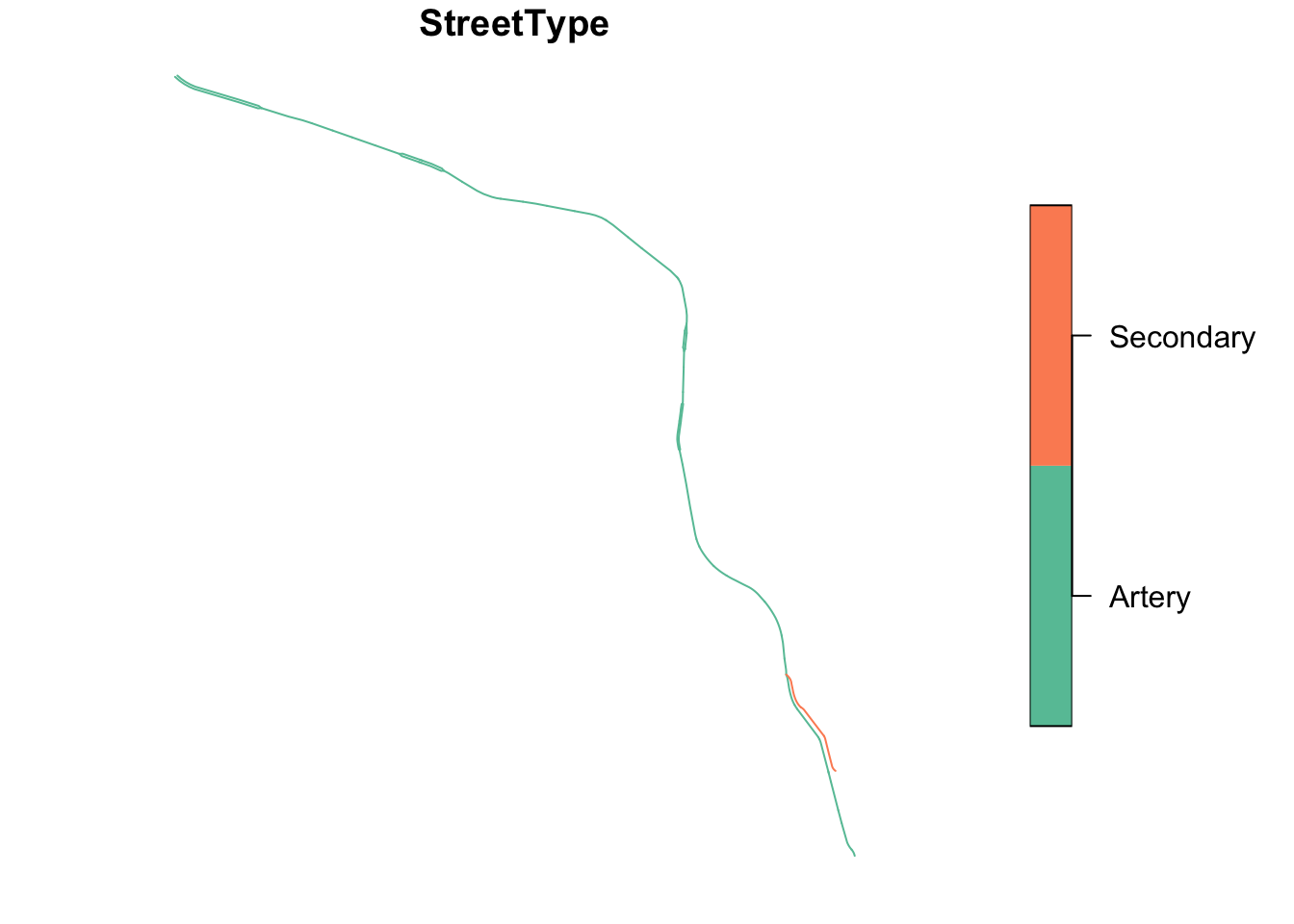

We can then plot this using the built-in plot commands as:

plot( three_chopt["StreetType"] )

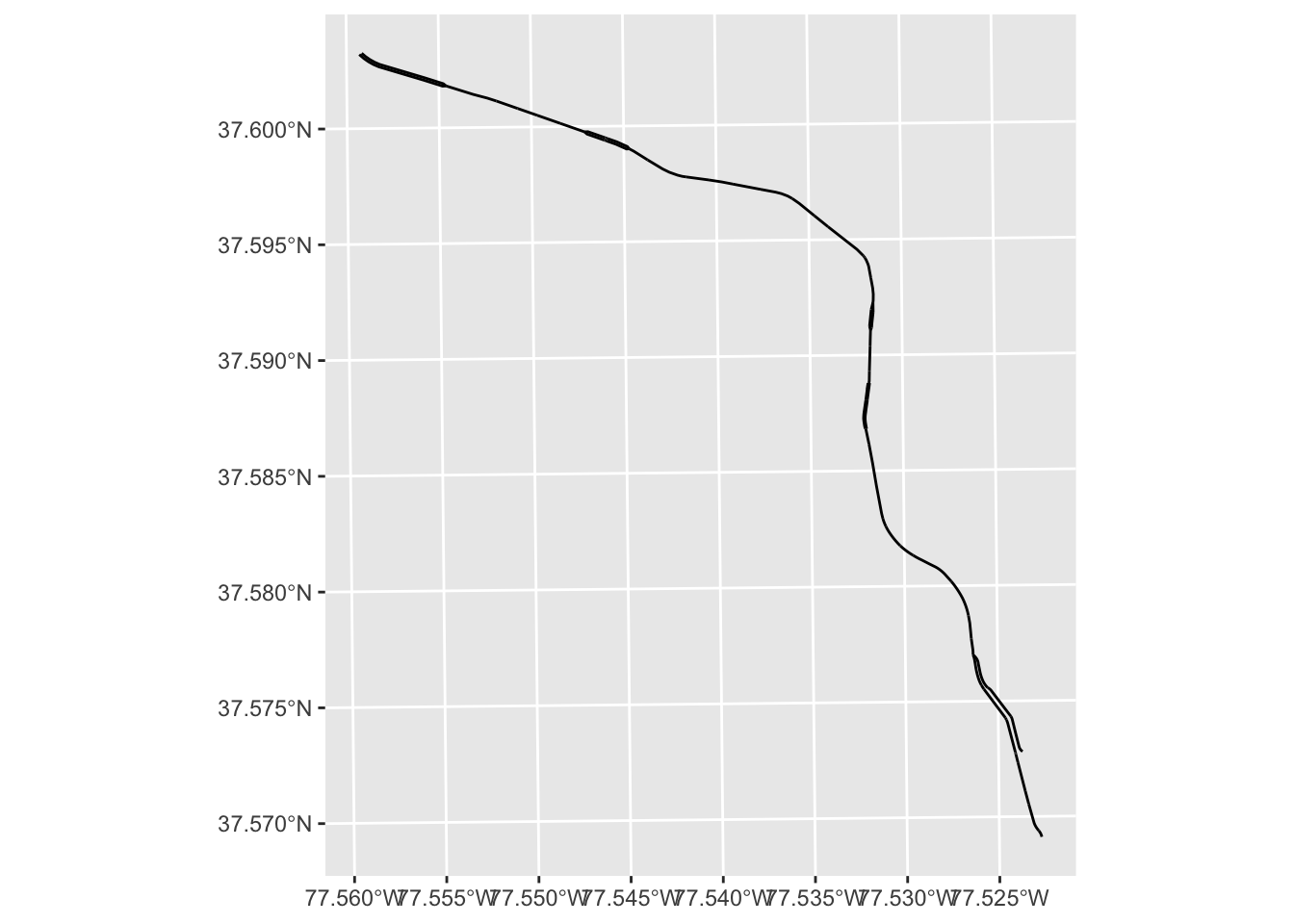

Or using ggplot as:

ggplot( three_chopt ) +
  geom_sf() +
  coord_sf()

Polygons

Polygons are simply lines whose first and last point are the same (e.g., they close upon themselves). We can create these de novo

Polygons from Data Frames

As a first approximation, we can grab polygon data from ggplot itself. Here I pull in the data.frame representing the counties of Virginia.

library( maps )

Attaching package: 'maps'

The following object is masked from 'package:purrr':

    map

map_data( "county", "virginia") %>%
  select( Longitude = long,
          Latitude = lat,
          group,
          County = subregion) -> va_counties
head( va_counties )

  Longitude Latitude group   County
1 -75.27519 38.03867     1 accomack
2 -75.21790 38.02721     1 accomack
3 -75.21790 38.02721     1 accomack
4 -75.24655 37.99283     1 accomack
5 -75.30384 37.94127     1 accomack
6 -75.31530 37.92981     1 accomack

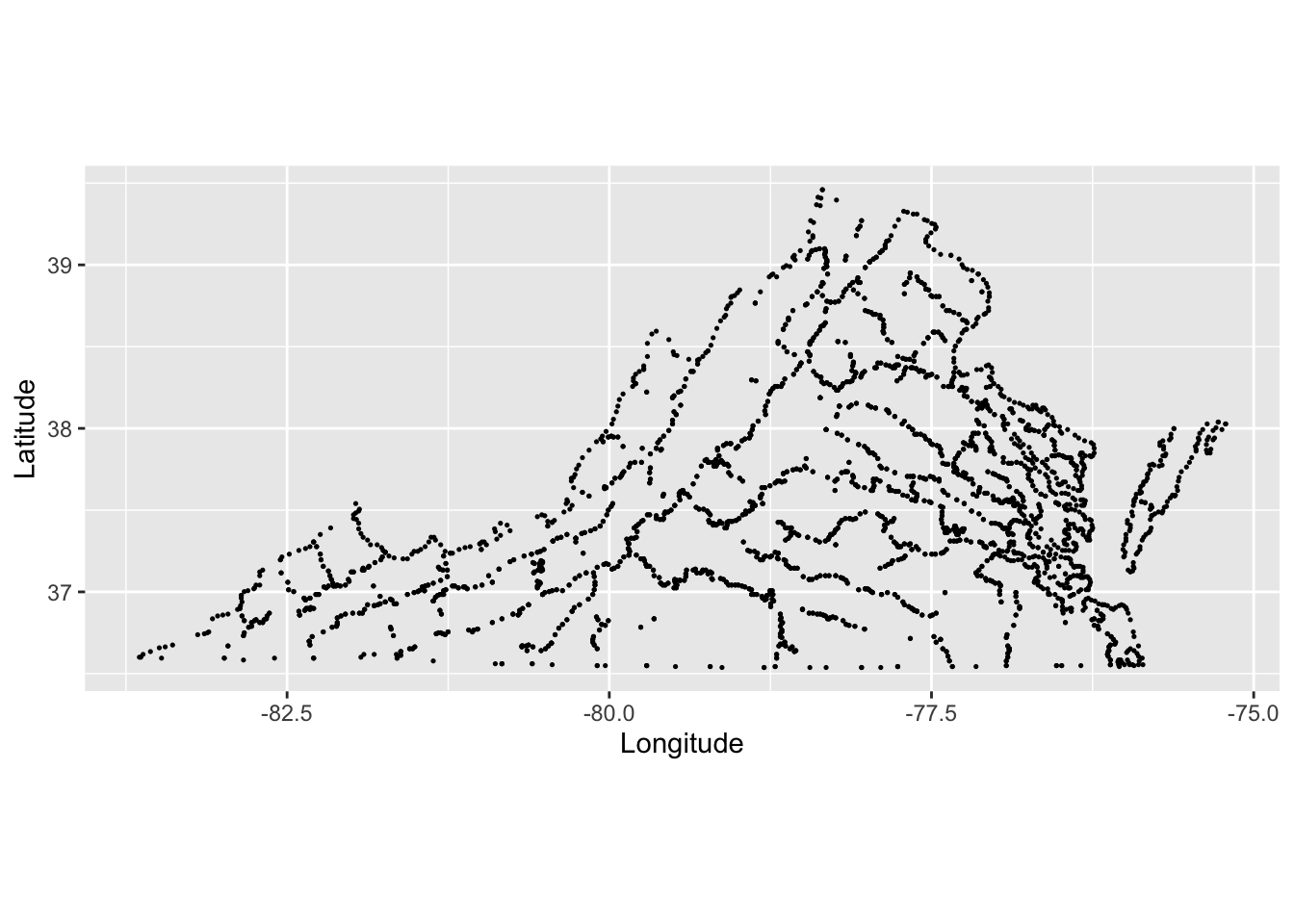

To get an idea of what theses data represent visually, let’s first plot it as a geom_point() object. This wil show you where all the coordinates are located (just not the connecting lines).

ggplot( va_counties, aes( Longitude, Latitude) ) +
  geom_point( size=0.25 ) +
  coord_quickmap()

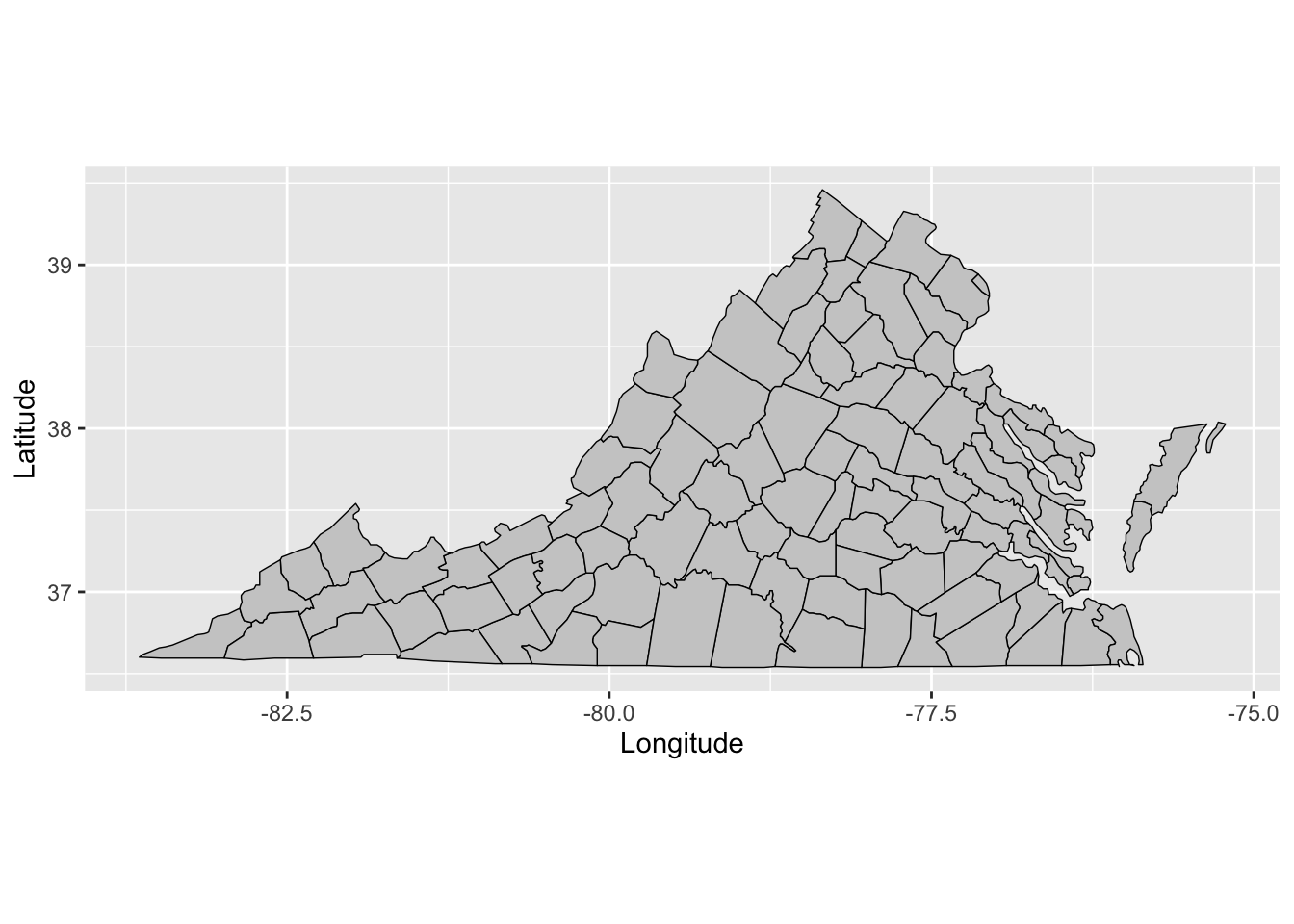

ggplot( va_counties, aes( Longitude, Latitude) ) +
  geom_polygon( aes( group=group ),
                fill="grey80",
                color = "black",
                size = 0.25) +
  coord_quickmap()

Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

What is hidden here is the complexity of the the points themselves. Each county is identified by a group in the data.frame

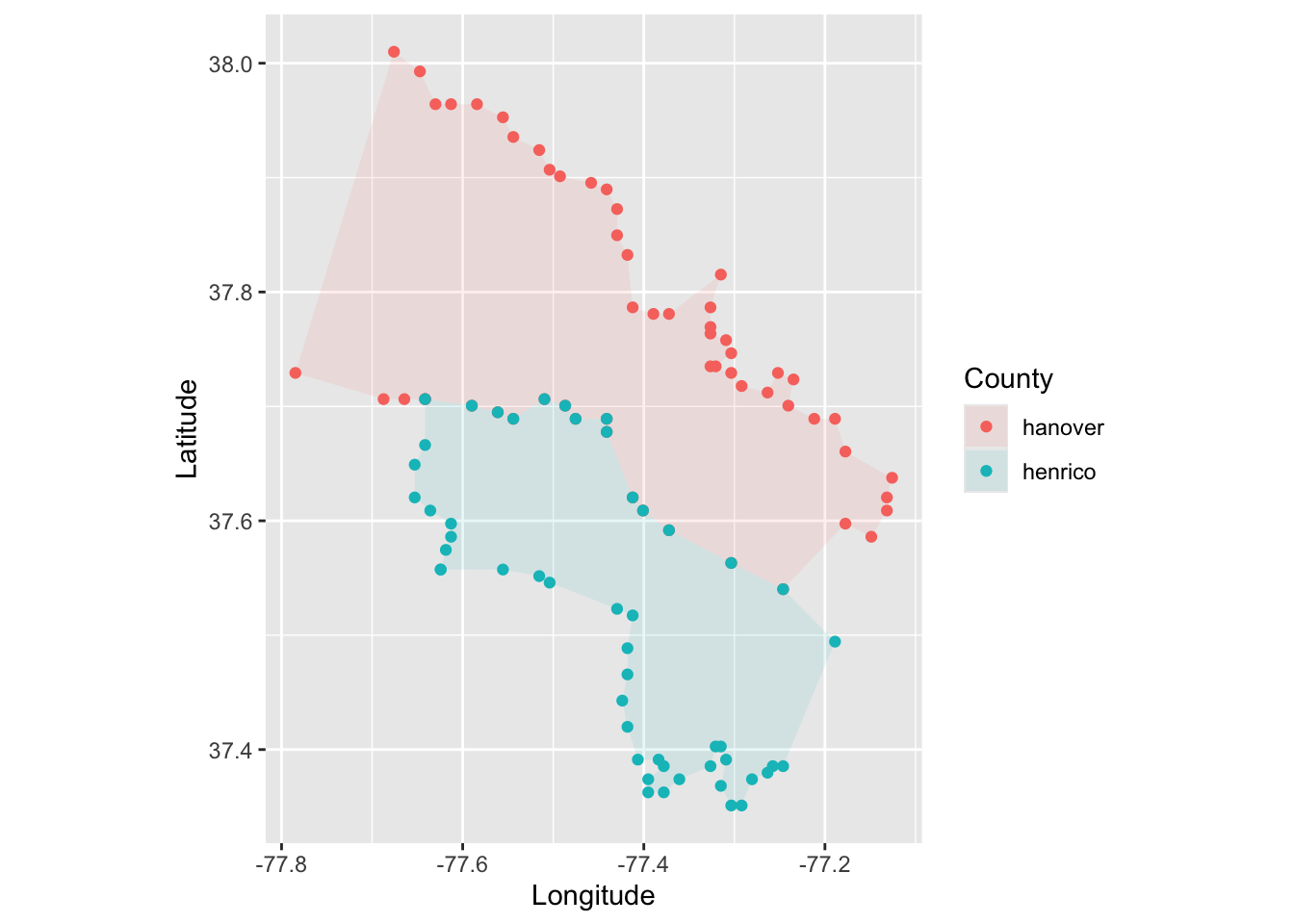

If we look at a particular county, it may be a bit more informative on how these things are consturcted. Here are the points (in red) and the underlying connecting lines creating the polygon (in grey).

va_counties %>%
  filter( County %in%  c("hanover","henrico") ) %>%
  ggplot( aes(Longitude, Latitude) ) +
  geom_polygon( aes( fill = County), alpha=0.1 ) +
  geom_point( aes( color = County) ) +
  coord_quickmap()

Notice that the points on the border are repeated in both County == "hanover" and County == "henrico".

Polygons from Shapefiles

We can also load these in from shapefiles. In the Richmond GIS data, we have Zoning District data. We can unzip them in the current directory as before.

unzip( "./Districts.zip")

And in this case, it simply expands all the files in the current directory as a set of files named Zoning_Districts.*.

system("ls -al Zoning*")

To load it in, we read the shapefile (.shp) from the local directory.

districts <- st_read( "Zoning_Districts.shp" )

Reading layer `Zoning_Districts' from data source
  `/Users/rodney/Courses/ENVS543-Book/Zoning_Districts.shp' using driver `ESRI Shapefile'
Simple feature collection with 634 features and 14 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: 11743500 ymin: 3687944 xmax: 11806060 ymax: 3744741
Projected CRS: NAD83 / Virginia South (ftUS)

class( districts )

[1] "sf"         "data.frame"

This has a lot of columns of information.

names( districts )

 [1] "OBJECTID"   "Name"       "Ordinance"  "OrdinanceP" "Conditiona"
 [6] "AdoptionDa" "Comment"    "CreatedBy"  "CreatedDat" "EditBy"
[11] "EditDate"   "GlobalID"   "Shape__Are" "Shape__Len" "geometry"

summary( districts )

    OBJECTID          Name            Ordinance          OrdinanceP
 Min.   :   1.0   Length:634         Length:634         Length:634
 1st Qu.: 162.2   Class :character   Class :character   Class :character
 Median : 324.5   Mode  :character   Mode  :character   Mode  :character
 Mean   : 389.6
 3rd Qu.: 486.8
 Max.   :2677.0
  Conditiona          AdoptionDa           Comment           CreatedBy
 Length:634         Min.   :2000-01-01   Length:634         Length:634
 Class :character   1st Qu.:2000-01-01   Class :character   Class :character
 Mode  :character   Median :2000-01-01   Mode  :character   Mode  :character
                    Mean   :2004-01-20
                    3rd Qu.:2007-09-10
                    Max.   :2020-07-27
   CreatedDat            EditBy             EditDate
 Min.   :2020-08-24   Length:634         Min.   :2020-08-24
 1st Qu.:2020-08-24   Class :character   1st Qu.:2020-08-24
 Median :2020-08-24   Mode  :character   Median :2020-08-24
 Mean   :2020-08-24                      Mean   :2020-08-24
 3rd Qu.:2020-08-24                      3rd Qu.:2020-08-24
 Max.   :2020-08-24                      Max.   :2020-08-24
   GlobalID           Shape__Are          Shape__Len                geometry
 Length:634         Min.   :     2823   Min.   :   213.4   MULTIPOLYGON :634
 Class :character   1st Qu.:    71070   1st Qu.:  1232.3   epsg:2284    :  0
 Mode  :character   Median :   258852   Median :  2552.3   +proj=lcc ...:  0
                    Mean   :  2749033   Mean   :  6265.9
                    3rd Qu.:  1175317   3rd Qu.:  6166.8
                    Max.   :171812574   Max.   :111874.1

More importantly, we can look at the raw data and see the other meta data.

head(districts, n=2)

Simple feature collection with 2 features and 14 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: 11773600 ymin: 3730159 xmax: 11789510 ymax: 3731016
Projected CRS: NAD83 / Virginia South (ftUS)
  OBJECTID Name Ordinance OrdinanceP Conditiona AdoptionDa Comment
1        1 RO-2      <NA>       <NA>         No 2000-01-01    <NA>
2        2  B-2      <NA>       <NA>         No 2000-01-01    <NA>
           CreatedBy CreatedDat             EditBy   EditDate
1 richard.morton_cor 2020-08-24 richard.morton_cor 2020-08-24
2 richard.morton_cor 2020-08-24 richard.morton_cor 2020-08-24
                              GlobalID Shape__Are Shape__Len
1 334799f0-fe38-46bf-97c2-260f5a036559   60150.29   983.6815
2 558df9cd-4f9c-4248-a689-bc2d9c79d060   56987.01   971.8832
                        geometry
1 MULTIPOLYGON (((11773598 37...
2 MULTIPOLYGON (((11789222 37...

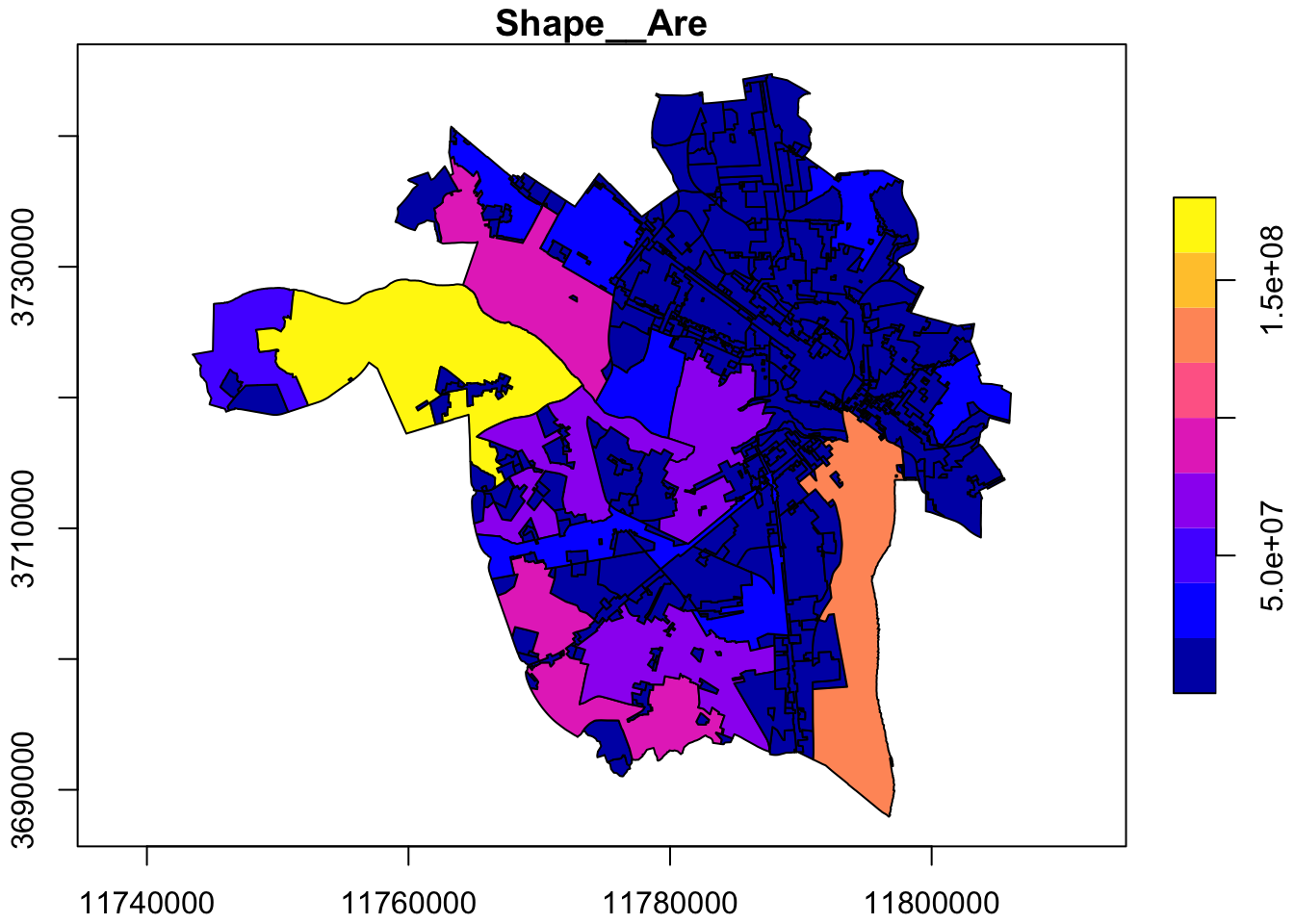

The whole thing looks like this (I’ll use the area of each polygon as the fill color).

plot( districts["Shape__Are"], axes=TRUE )

Notice it is in CRS = NAD83/Virginia South (ftUS), which if we look at epsg.io and search for it relates to EPGS=32147. Let’s do some pre-processing¹:
- Put it in Lat/Lon for simplicity
- Drop some of the unnecessary columns of data in the shapefile. - Crop to the VCU/Fan area (I went to google earth and found the bounding box and then just added it here so I had to make it lat/lon then crop then change it back).

districts %>%
  select( OBJECTID,
          Name,
          GlobalID,
          Area = Shape__Are,
          geometry) -> districts
head( districts )

Simple feature collection with 6 features and 4 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: 11772310 ymin: 3727332 xmax: 11794670 ymax: 3731016
Projected CRS: NAD83 / Virginia South (ftUS)
  OBJECTID Name                             GlobalID      Area
1        1 RO-2 334799f0-fe38-46bf-97c2-260f5a036559  60150.29
2        2  B-2 558df9cd-4f9c-4248-a689-bc2d9c79d060  56987.01
3        3  R-6 8d731cd3-7cfb-41d4-9545-44f1055515b3  93826.03
4        4  B-1 f4fb1283-03ff-41e7-b5ed-3cf6e80c2e9b  17526.31
5        5  B-1 f1305477-4e71-463c-a202-332971d8c5e1  33261.30
6        6 RO-1 65e43734-9728-4241-921d-c657137dae0a 132773.19
                        geometry
1 MULTIPOLYGON (((11773598 37...
2 MULTIPOLYGON (((11789222 37...
3 MULTIPOLYGON (((11774598 37...
4 MULTIPOLYGON (((11794468 37...
5 MULTIPOLYGON (((11781126 37...
6 MULTIPOLYGON (((11772306 37...

And we can plot it normally using plot() for sf objects. Each row is a MULTIPOLYGON object.

districts %>%
  filter( OBJECTID == 368 ) %>%
  st_buffer(dist = 1500) %>%
  st_bbox() -> fan_bbox
districts %>%
  st_crop( fan_bbox ) -> theFan

Warning: attribute variables are assumed to be spatially constant throughout
all geometries

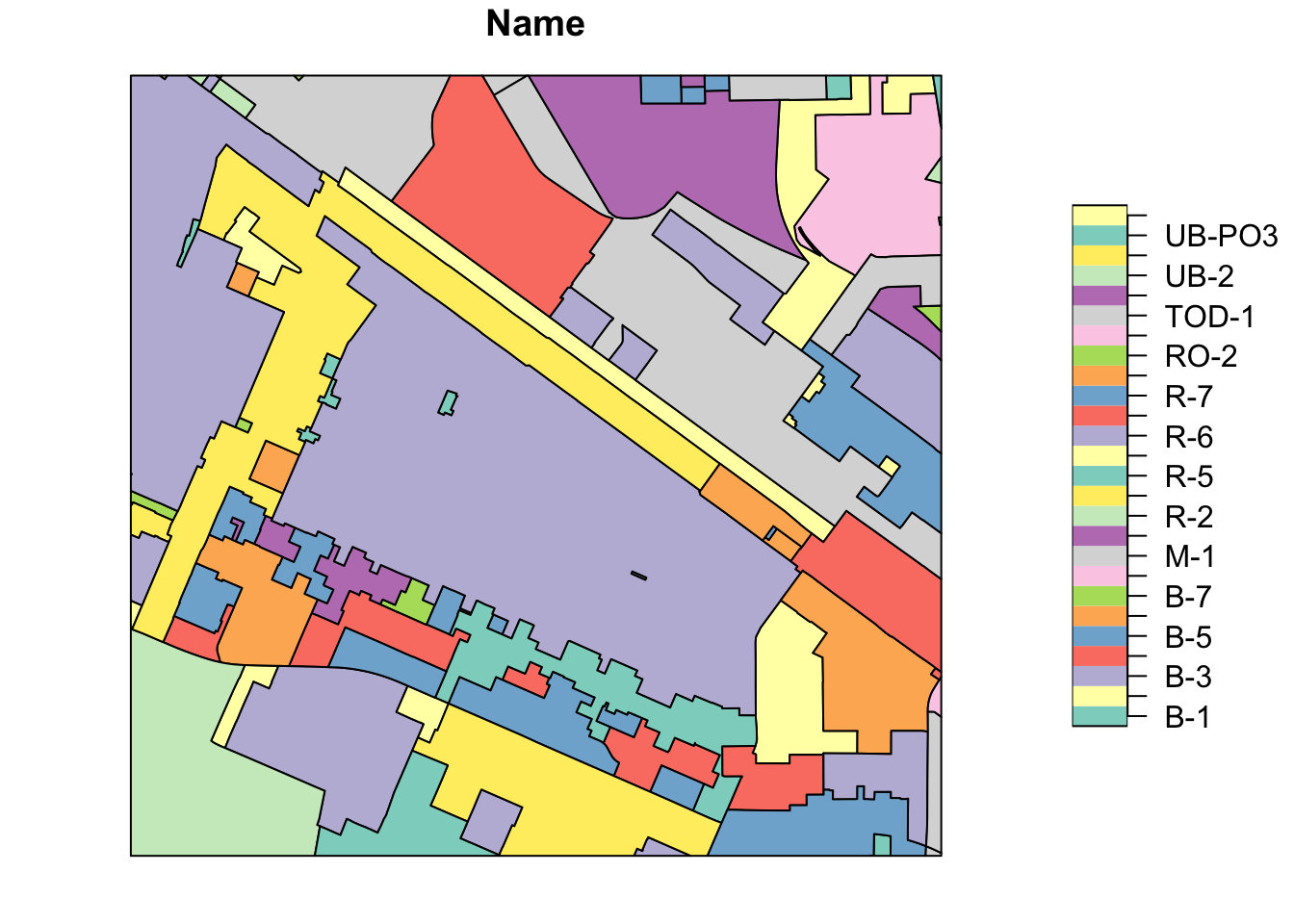

plot( theFan["Name"] )

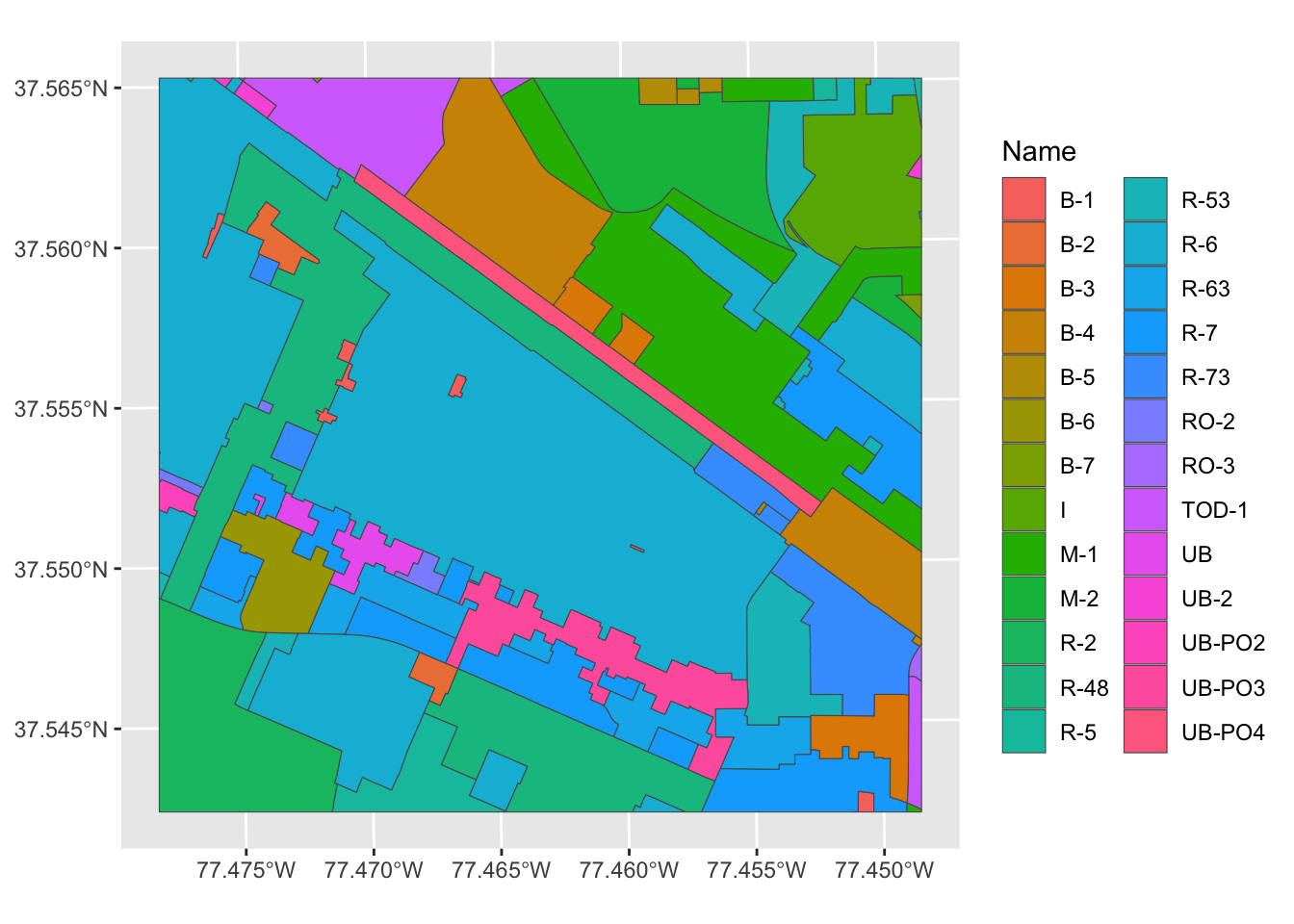

Or as a ggplot() object (notice how it converts to lat/lon when plotting),

ggplot( theFan ) +
  geom_sf( aes( fill=Name ) ) +
  coord_sf()

Let’s go grab a key to those zoning types. I’ve uploaded a csv file with a translation. Here I left_join() with that new file that is read in dynamically².

zone_url <- "https://raw.githubusercontent.com/dyerlab/ENVS-Lectures/master/data/DistrictCodes.csv"
theFan %>%
  left_join( read_csv( zone_url ),
             by="Name") %>%
  mutate( Category = factor( Category) ) %>%
  select( OBJECTID,
          Name,
          Category,
          everything() )  -> theFan

Rows: 27 Columns: 2
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (2): Name, Category

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

ggplot( theFan ) +
  geom_sf( aes( fill=Category)) +
  scale_fill_brewer( type="qual",
                     palette = "Set3")

Operations

So we will close this out by looking at a few different operations that we can use for polygons. First, I’m going to load in the road shapefile (that was named by some random sequence of letters) and reproject it.

head( roads, n=3)

Simple feature collection with 3 features and 6 fields
Geometry type: LINESTRING
Dimension:     XY
Bounding box:  xmin: 11775970 ymin: 3733301 xmax: 11786050 ymax: 3740059
Projected CRS: NAD83 / Virginia South (ftUS)
  FIPS AssetID StreetType Functional    FullName OneWay
1  760       2  Secondary      Local   Sauer Ave   <NA>
2  760       3  Secondary      Local   Sauer Ave   <NA>
3  760      89  Secondary      Local Amherst Ave   <NA>
                        geometry
1 LINESTRING (11775968 373330...
2 LINESTRING (11775997 373334...
3 LINESTRING (11785407 374003...

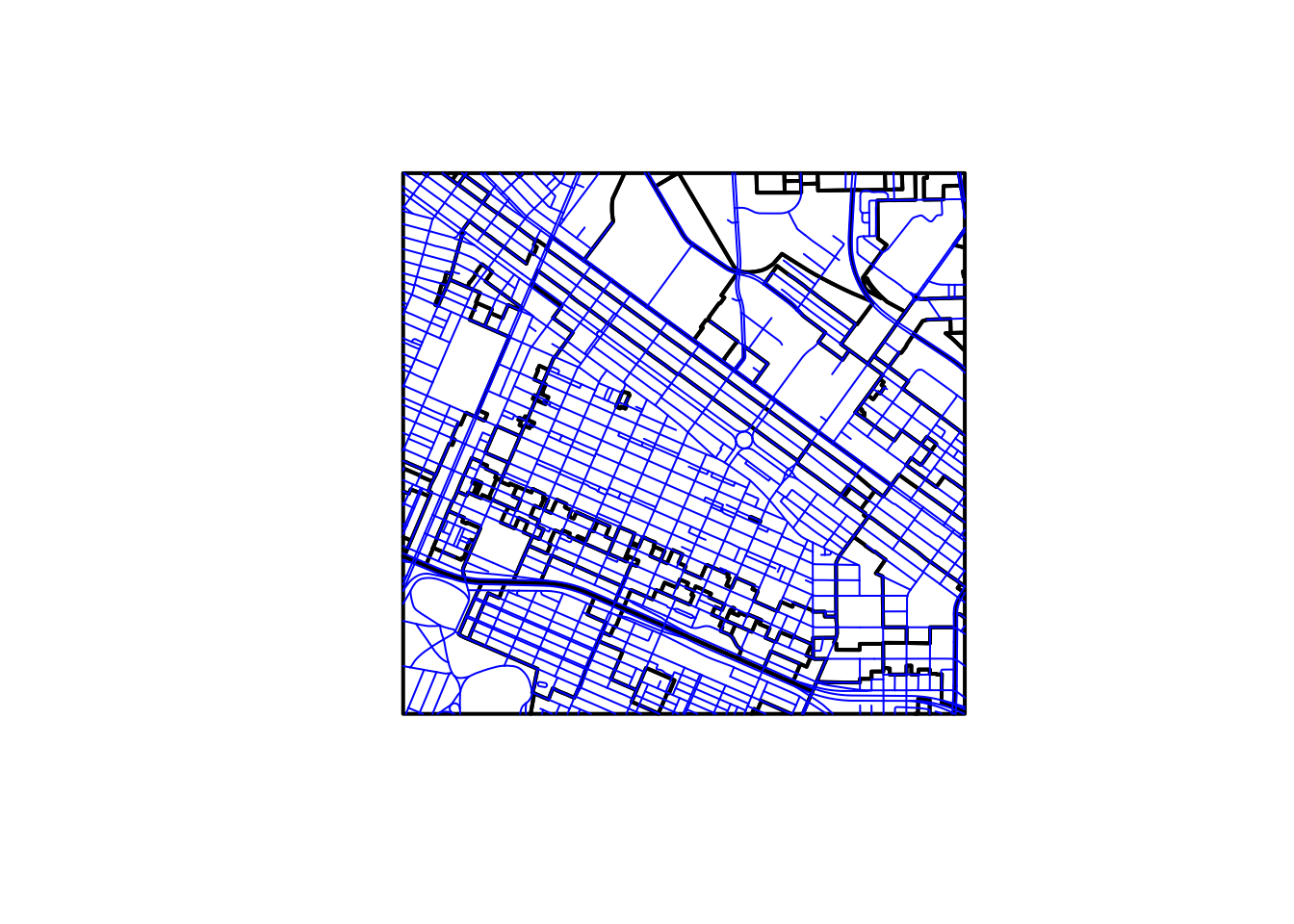

plot( theFan$geometry, lwd=2 )
fanRoads <- st_crop( roads, st_bbox( theFan ))

Warning: attribute variables are assumed to be spatially constant throughout
all geometries

plot( fanRoads$geometry, col="blue", cex=0.5, add=TRUE )

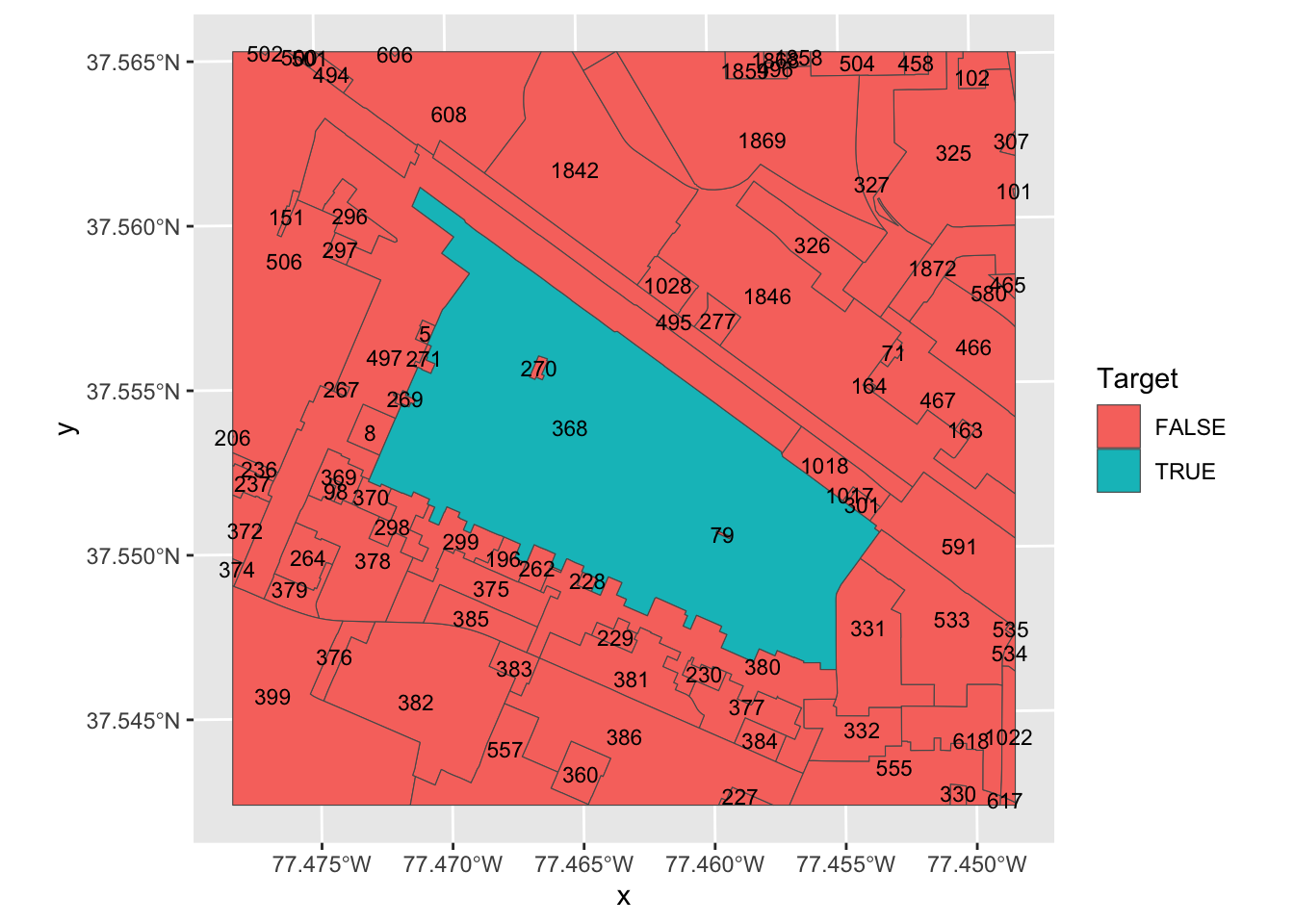

Let’s isolate one of the main polygons in theFan data set. The target one below is indicated by OBJECTID=368.

theFan %>%
  mutate( Target = ifelse( OBJECTID == 368,
                           TRUE,
                           FALSE) ) -> theFan
theFan %>%
  ggplot() +
  geom_sf( aes(fill=Target) ) +
  geom_sf_text( aes(label=OBJECTID), size=3 ) +
  coord_sf()

Spatial Joins

names( theFan )

[1] "OBJECTID" "Name"     "Category" "GlobalID" "Area"     "geometry" "Target"

names( fanRoads )

[1] "FIPS"       "AssetID"    "StreetType" "Functional" "FullName"
[6] "OneWay"     "geometry"

We can use spatial joins to select features either directly. Here I’ll use the target polygon in theFan

target <- theFan[ theFan$OBJECTID == 368, ]
target

Simple feature collection with 1 feature and 6 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 11780610 ymin: 3724146 xmax: 11786260 ymax: 3729483
Projected CRS: NAD83 / Virginia South (ftUS)
   OBJECTID Name    Category                             GlobalID     Area
39      368  R-6 Residential d9882dad-2625-44e7-a170-3f1425450679 13040977
                         geometry Target
39 POLYGON ((11785188 3726513,...   TRUE

And then add an attribute to the data.frame if each multipolygon intersects that polygon.

fanRoads %>%
  mutate( OnTarget = st_intersects( fanRoads,
                                    target,
                                    sparse = FALSE ) ) -> fanRoads
summary( fanRoads$OnTarget )

     V1
 Mode :logical
 FALSE:1567
 TRUE :553

We can get the names of these road using normal dplyr routines,

fanRoads %>%
  filter( st_intersects( fanRoads,
                         target,
                         sparse = FALSE ) == TRUE ) %>%
  as_data_frame() %>%
  select( `Street Name` = FullName ) %>%
  arrange( `Street Name`) %>%
  unique()

Warning: `as_data_frame()` was deprecated in tibble 2.0.0.
ℹ Please use `as_tibble()` (with slightly different semantics) to convert to a
  tibble, or `as.data.frame()` to convert to a data frame.

Warning: Using one column matrices in `filter()` or `filter_out()` was deprecated in
dplyr 1.1.0.
ℹ Please use one dimensional logical vectors instead.

# A tibble: 39 × 1
   `Street Name`
   <chr>
 1 Allison St
 2 Birch St
 3 Boyd St
 4 Floyd Ave
 5 Grove Ave
 6 Hanover Ave
 7 Kensington Ave
 8 Lombardy Pl
 9 Madumbie Lane
10 Monument Ave
# ℹ 29 more rows

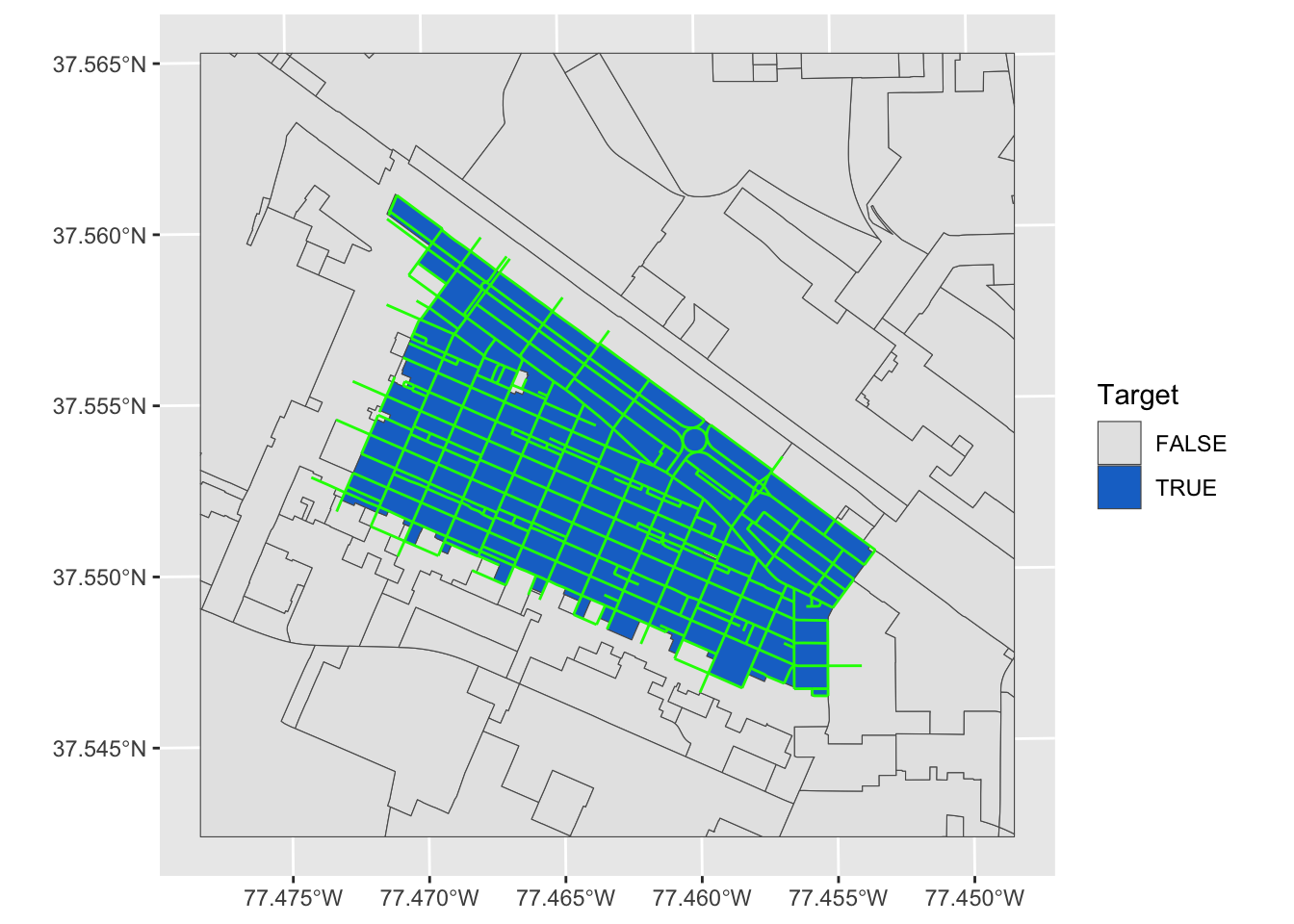

And we can plot them as:

fanRoads %>%
  filter( OnTarget==TRUE ) %>%
  ggplot() +
  geom_sf( aes( fill = Target ), data=theFan ) +
  geom_sf( color="green" ) +
  scale_fill_manual( values=c("grey90","dodgerblue3"))

Warning: Using one column matrices in `filter()` or `filter_out()` was deprecated in
dplyr 1.1.0.
ℹ Please use one dimensional logical vectors instead.

Go check out the sf cheatsheet for more geospatial joins and options.

---

1. Dyer’s First Law: Reproject then forget about it!

2. You should be careful when you use joins on sf objects. If you sf object is on the right side (see discussion of joins here) then the result will not be an sf object and you’ll have to coerce it back into one again. It always adopts the characteristics of the left object.
